The safest way to wire UTV accessories is to run every circuit through a fused auxiliary distribution point or an OEM-style plug-and-play harness, with each fuse mounted close to the battery’s positive terminal. The one rule that matters most: never let a fuse outrank the wire it protects, and never place it far from the power source. Get those two things right, and everything else—gauge, connectors, routing—becomes straightforward.
TL;DR:
- Proper fuse placement is critical, with all fuses mounted close to the battery’s positive terminal, and never above the wire’s ampacity.
- Use a fuse block or bus bar as the central hub for all accessories instead of wiring directly to the battery, simplifying troubleshooting and enhancing reliability.
- Match wire gauge to both the load and the run length, with typical guidance being 14 AWG for short, light circuits and 10 AWG for high-current accessories like winches.
- Waterproof connectors like Deutsch or Superseal are essential for exterior runs, while marine-grade heat-shrink butt connectors suit protected interior wiring.
- Prioritize solid grounds and sealed connections, and consider plug-and-play harnesses to reduce failure points and save installation time.
Table of Contents
- Plan the job: map accessories, loads, and power sources
- Wire gauge and fuse sizing: choose wires for length and amps
- Power distribution: fuse blocks, bus bars, relays and master switches
- Connectors and protection: waterproofing, crimping, soldering, and heat-shrink
- Routing, fastening, and mechanical protection
- Plug-and-play harnesses vs. cut-and-splice: tradeoffs and recommendations
- Testing and troubleshooting: verify power, fuses, and grounds
- Author perspective and practical shop tips from Dirty Birdy Powersports
- What actually matters most in accessory wiring
- How Dirty Birdy Powersports can help with harnesses and installation
- Sources
- FAQ
Plan the job: map accessories, loads, and power sources
Before any wire gets cut, sketch where each accessory lives and how much current it draws. A light bar, a stereo amp, and a winch each pull very different loads, and stacking them without a plan is how people end up chasing mystery electrical gremlins months later.
- List every planned accessory with its location and estimated amp draw, then add them up against your battery and charging output.
- Decide early whether each item should run on keyed power (off with the ignition) or constant power, since that decision drives whether you need a relay.
- Route accessory power through an auxiliary bus bar rather than piling ring terminals directly onto the battery post.
Centralizing power this way keeps the battery terminals clean and gives you one organized point to add or remove accessories later.
Wire gauge and fuse sizing: choose wires for length and amps
Wire gauge has to match both the amperage and the length of the run, not just the accessory’s rating on the box. Common guidance for 12 volt UTV circuits calls for 14 AWG on short, light-load runs under about 10 feet, moving up to 12 AWG for longer or heavier circuits, with 10 AWG reserved for higher-draw items like amplifiers or winches.
- Match wire gauge to the accessory’s actual amp draw plus the length of the run, not a guess.
- Fuse each circuit close to the battery, sized just above the accessory’s rated draw, never above the wire’s ampacity.
- If a fuse blows repeatedly, hunt for a short or a failing accessory. Do not install a bigger fuse to make the problem go away.
Standard automotive blade fuses cover most UTV accessory work, with common ratings running from small ATO fuses up through MAXI fuses for high-current gear like winches. A quick example: a 10-amp light bar running 12 feet of wire to the front bumper is a solid candidate for 14 AWG wire and a 15-amp fuse, while an amplifier drawing 25 amps over a similar distance needs 10 AWG wire and a fuse sized just above that draw.
Power distribution: fuse blocks, bus bars, relays and master switches
An auxiliary fuse block or bus bar turns a tangle of ring terminals into one organized hub. Instead of running five wires to the battery, you run one heavy feed to the block, then short branch circuits to each accessory. That single change is behind most of the reliability gains shops see when they move a build off the battery post and onto a distribution block.
- Use a fuse block or bus bar as the single hub for all accessory circuits rather than connecting them directly to the battery terminals.
- Wire switches to trigger a relay’s coil, letting the relay’s heavier contacts carry the actual accessory current.
- Add a master switch or a switched fuse block feed so accessories cannot silently drain the battery when the vehicle is parked.
Relays matter most on higher-draw items like light bars and winches, where running full current through a dash switch would overheat the switch itself.

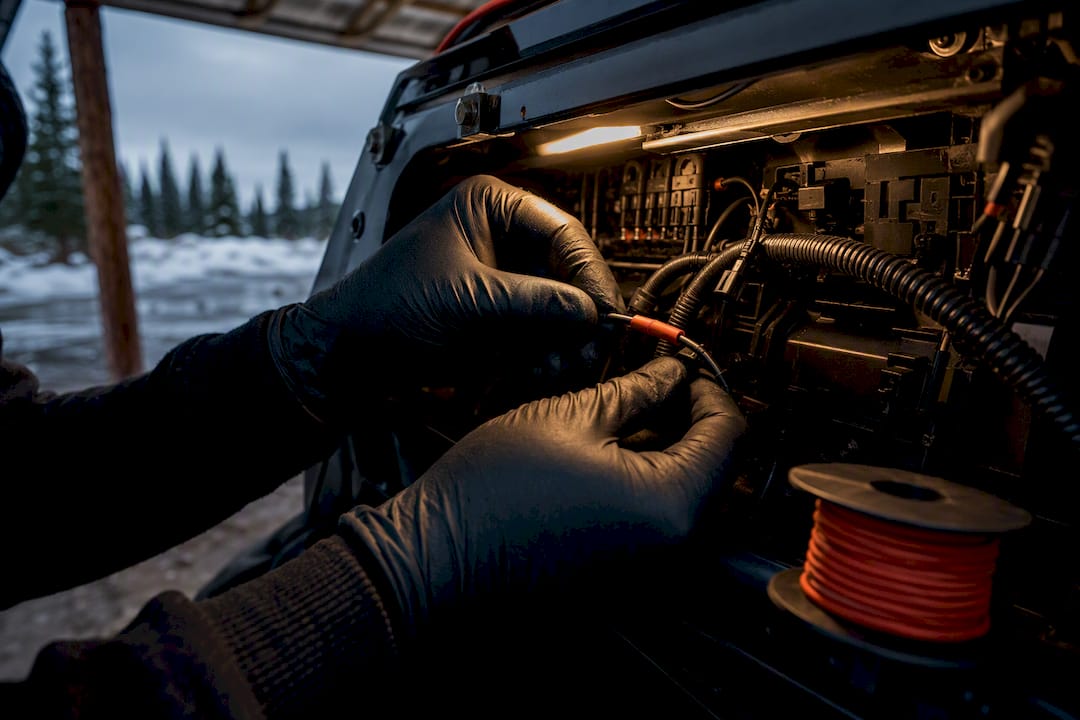

Connectors and protection: waterproofing, crimping, soldering, and heat-shrink
UTVs live in mud, water, and constant vibration, so the connectors matter as much as the wire gauge. Sealed connectors like Deutsch DT-series or Superseal-style plugs shrug off moisture far better than open bullet or spade connectors, and they are worth the extra cost on anything exposed to the elements. Marine-grade heat-shrink butt connectors are a good middle ground for interior or protected runs.
- Choose sealed Deutsch or Superseal connectors for exterior runs, and marine-grade heat-shrink butt connectors for protected interior splices.
- Crimp with a proper ratcheting crimper rather than pliers, and solder only where you can also seal the joint afterward.
- Slide heat-shrink onto the wire before making any splice. It cannot go on after the connection is made.
Use dielectric grease inside connector housings and rubber grommets anywhere a wire passes through sheet metal.
Pro Tip: Keep a spool of adhesive-lined heat-shrink in your toolbox. It seals better than standard heat-shrink and holds up longer under trail vibration.
Routing, fastening, and mechanical protection
Wire failures on UTVs are usually mechanical, not electrical: chafed insulation, melted jackets near the exhaust, or a connector that vibrated loose. Routing with intention prevents most of it.
- Keep every wire run clear of the exhaust, moving suspension components, and any sharp chassis edges.
- Protect exposed runs with split loom tubing, and use rubber grommets anywhere wire passes through a metal panel.
- Secure wiring with zip ties every few inches, leaving a small service loop near connectors instead of pulling everything drum-tight.
- Clean ground points down to bare metal, keep ground wires as short as practical, and consider a ground bus when running several accessories.
A loose or corroded ground is one of the most common causes of accessory failure, and it is often the last thing people check.
Plug-and-play harnesses vs. cut-and-splice: tradeoffs and recommendations
Plug-and-play harnesses exist because professional installers consistently see fewer failures with pre-configured kits than with wiring built from multiple field splices. Sealed connectors, correctly sized fuses, and built-in relays are already sorted out before the box is opened.
- A plug-and-play harness with a built-in switch, like this LED light bar harness, skips most of the guesswork around fuse sizing and relay wiring.
- Custom wiring still makes sense for one-off accessories, provided you replicate the same sealed connectors and fuse placement a harness would use.
- Book professional installation for high-current setups, complex integrations with factory wiring, or any job where preserving the manufacturer’s warranty matters.
Testing and troubleshooting: verify power, fuses, and grounds
A new install deserves the same checklist as a failing one. Work through it in order rather than guessing at the cause.
- Inspect fuses and connections visually for corrosion, melted insulation, or loose terminals.
- Check battery voltage at rest, then again with the engine running to confirm charging output.
- Measure voltage at the accessory itself under load, not just at the battery.
- Test for voltage drop across any connector or splice you suspect, since a drop under load is the clearest sign of a failing connection.
Most trail failures trace back to a poor ground, a corroded connector, insulation crushed under a fastener, or wire that was simply undersized for the load. Carry a multimeter, a handful of spare fuses, a crimp kit, extra heat-shrink, and dielectric grease. That kit resolves the majority of roadside electrical problems without a tow.
Author perspective and practical shop tips from Dirty Birdy Powersports
Shop experience backs up what the guides above recommend: harnesses with sealed connectors fail less often than field splices, and a fuse mounted right at the battery saves far more headaches than one buried behind a dash panel. The shop sells at MSRP with no markups and has built its reputation on riders who actually use the machines they sell.
- Favor OEM-style plug-and-play kits for cameras, lighting, and stereo installs whenever one exists for your model.
- Keep a spare fuse of every rating used on the vehicle, plus a spare relay, in the glove box.
- Book a shop install for winch wiring or anything sharing circuits with factory safety systems. That is where a mistake gets expensive fast.
What actually matters most in accessory wiring
The wiring advice online tends to fixate on wire gauge charts, as if picking the right AWG were the hard part. It rarely is. The failures that actually strand riders come from bad grounds, unsealed connectors, and fuses placed somewhere convenient instead of somewhere close to the battery. Gauge selection is a five-minute lookup. Weatherproofing and fuse placement are the parts people skip because they take longer and seem less important.
If you take one thing from this guide, prioritize the fuse location and the ground point before you worry about anything else. A slightly oversized wire on a well-grounded, properly fused circuit will outlast a perfectly sized wire on a corroded ground every time. Buy the plug-and-play harness when one exists for your accessory. It is not cutting corners, it is buying the reliability that a shop would build in anyway.
— Dirty
How Dirty Birdy Powersports can help with harnesses and installation
If you would rather skip the trial and error, Dirty Birdy Powersports stocks OEM and aftermarket harnesses, lighting kits, and accessory hardware, including options like this camera plug-and-play harness for select RZR models. Every part sells without markup, and installation services are available along with nationwide delivery.
Browse current inventory and accessories at Dirty Birdy Powersports or reach out to book a fitting.
Sources
The safety and technical guidance above draws on installer-focused resources: Ehaho’s UTV wiring guide on gauge selection, RAVEK’s overview of UTV electrical systems, HELLA’s grounding and voltage-drop diagnostics, and PoweringAutos’ guide to wiring multiple accessories. For loom relocation reference, LRD Track’s fuse box relocation loom page is a useful technical example.
- UTV Wiring 101: Understanding electrical systems and upgrades — RAVEK
- Earth troubleshooting and grounding guidance — HELLA TechWorld
- How to hook up multiple items to UTV battery — PoweringAutos
- CFMOTO OEM accessories — bus bar
FAQ
Where should you connect accessory wires?
Accessory wires should connect to a fused auxiliary distribution block or bus bar rather than directly to the battery terminals, with the fuse mounted close to the battery’s positive post. This keeps the battery clean and gives each accessory its own protected circuit.
What are the most important accessories for a UTV?
The most commonly wired UTV accessories are LED light bars, switch panels, stereo systems, winches, and cameras. Each draws a different current load, so gauge and fuse sizing should be calculated per accessory rather than assumed.
What are the typical wiring accessories used in an install?
A typical setup includes a fused auxiliary bus bar, a plug-and-play wiring harness, inline fuse holders with blade fuses, marine-grade butt connectors with heat-shrink, and a multimeter for testing. Relays and a master kill switch are common additions for higher-draw or always-on accessories.
What color is the accessory wire?
Wire color conventions vary by manufacturer and aftermarket kit, so there is no single universal standard across all UTVs. Always confirm color coding against the specific harness or vehicle wiring diagram rather than assuming a color from another brand’s system.
