Yes, you can snorkel a CFMOTO ATV or UTV, and for most owners a purpose-built, model-specific kit is the smarter route since it bundles risers, vent-line extensions, and the right mounting hardware for your machine. If you’d rather build your own setup, precise routing and sealing matter more than the parts themselves, and you’ll need to raise the CVT and vent lines, not just the airbox. Below you’ll find a tools checklist, a step-by-step install, model notes, and tips drawn from real installs.
TL;DR:
- Raise the CVT inlet and outlet and differential breathers as well as the air intake; raising only the airbox leaves drivetrain vents exposed.
- Check fitment against your model and trim: CFORCE routing usually exits through a side panel, while ZFORCE runs through the center channel behind the seats.
- Pressure test joints with compressed air and soapy water, then try shallow water before deeper crossings; a snorkel limits exposure but cannot prevent drivetrain wear.
- A fitted kit offers shaped pipes and brackets with fewer leak points; DIY costs less upfront but demands careful sealing and routing.
- Ask your dealer about warranty coverage before cutting panels, because aftermarket modifications can affect coverage for related components on your machine.
Table of Contents
- What a snorkel kit includes and why fitment matters for CFMOTO models
- Tools and parts checklist you must have before starting
- Step-by-step snorkel installation across CFMOTO ATVs and UTVs
- Model notes and fitment tips for CFORCE, ZFORCE, and UForce machines
- DIY vs purpose-built kits: cost, reliability, and resale
- Post-install testing and routine maintenance to keep a snorkel working
- Dealer-tested tips from real CFMOTO snorkel installs
- Who should seriously consider snorkeling their CFMOTO
- How we can help with CFMOTO snorkel kits and installs
- FAQ
- Sources
What a snorkel kit includes and why fitment matters for CFMOTO models
A complete snorkel kit typically includes risers, rigid or flexible piping, vent-line extensions, a pre-filter tip, mounting brackets, hose clamps, silicone sealant, and illustrated instructions. Model-specific brackets and pre-shaped piping cut down on the cutting and fabrication you’d otherwise have to do by hand, which is the main reason a fitted kit beats a scratch-built one for most owners.

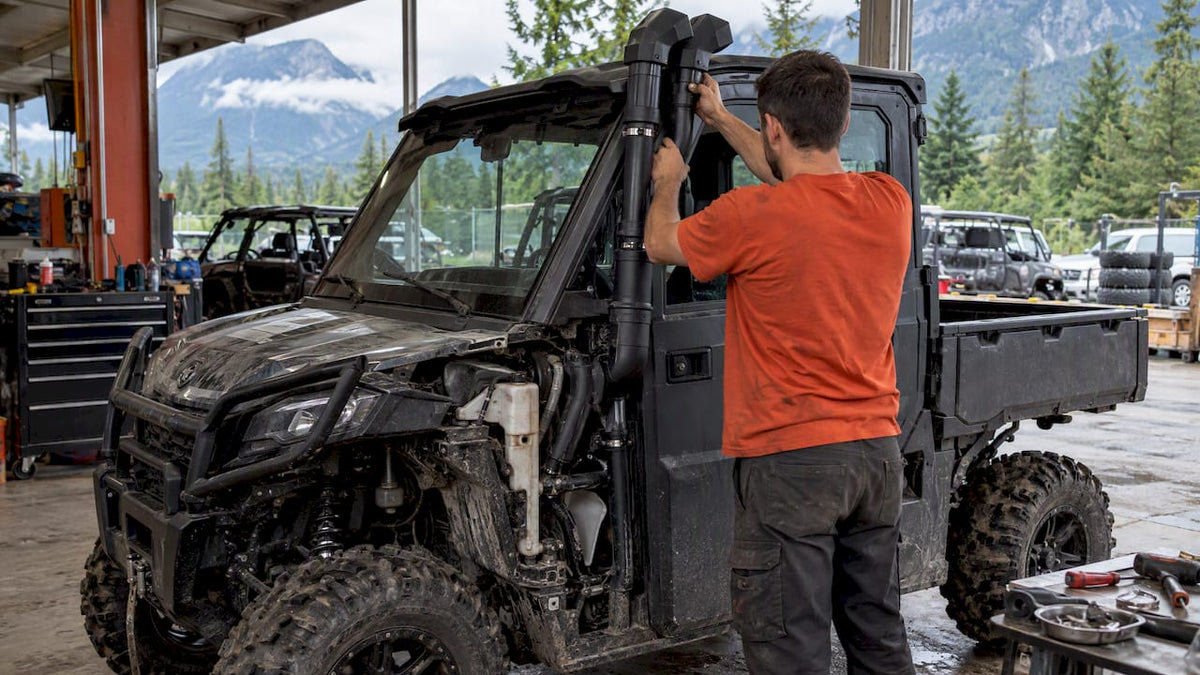

The snorkel kit built for the CF Moto UForce 1000 is a good example of what a Warrior Riser style kit covers: a 2 inch hard pipe system, multiple risers, routing for both the CVT inlet and outlet, air intake routing, and removable pre-filter tips with picture instructions included. That same source notes that cutting or drilling plastic panels is standard practice for these kits, and the pre-filter tips exist specifically to make cleaning easier while keeping debris out of the intake.
A typical kit box includes:
- Hard or flexible piping sized for your intake and vent diameters.
- Mounting brackets shaped for your specific model’s body panels.
- A pre-filter tip, clamps, and silicone sealant for airtight joints.
- Illustrated instructions showing where to cut or drill.
Tools and parts checklist you must have before starting
Before you touch a panel, lay out everything you’ll need so the job doesn’t stall halfway through. You’ll want a metric socket set, screwdrivers, trim removal tools, pliers, and a torque wrench for the mechanical side of things, plus a Dremel or nibbler, hole saws, a step bit for clean round holes, and deburring tools for the cutting work.
For fastening and sealing, stock up on stainless hose clamps, silicone RTV, Loctite, rivets, zip ties, and vibration-damping mounts. Keep jack stands, compressed air, a battery disconnect, and shop towels on hand for prep and cleanup. A few optional upgrades worth adding to the cart: pre-filter tips, replacement CVT seals, and a higher-grade breather hose.
- Hand tools: metric sockets, screwdrivers, trim tools, pliers, torque wrench.
- Cutting tools: Dremel or nibbler, hole saws, step bit, deburring tool.
- Sealing supplies: stainless clamps, silicone RTV, Loctite, zip ties, vibration-damping mounts.
Pro Tip: Buy clamps and sealant in quantities higher than you think you need. Running short mid-install usually means a rushed, leak-prone joint.
Step-by-step snorkel installation across CFMOTO ATVs and UTVs
The installation sequence is largely the same across CFMOTO models, with differences showing up mainly in panel access and vent locations. A canonical install process published for ATV snorkel kits walks through panel removal, routing, cutting, sealing, and testing, and it’s the backbone most aftermarket guides follow.
- Confirm kit fitment against your exact model and trim, read the instructions fully, disconnect the battery, and clean the work area.
- Remove center and side panels as needed, labeling hardware and clips so reassembly goes faster.
- Locate the airbox, loosen the factory clamps, and inspect the OEM seals before planning your riser connection point.
- Route risers and vent lines away from heat sources and moving parts, securing them with brackets and zip ties; include CVT and differential vent lines where your model requires them.
- Mark and cut body panels using a step bit or hole saw sized to your piping, then deburr every edge before fitting anything through it.
- Seal every joint with RTV or silicone, torque clamps to spec, and avoid over-tightening fittings into plastic housings, which can crack under pressure.
- Reassemble panels, re-torque fasteners, and run a dry-pressure test with compressed air and soapy water to catch leaks before they reach water.
- Perform a shallow-water test before attempting any deep crossing, and watch for belt slippage, unusual noises, or a check engine light on the first run.
Owners on CFMOTO forums frequently point out that CVT inlets and outlets along with diff vent tubes sit lower than the airbox and need their own routing, since raising only the air intake leaves the drivetrain exposed. The same thread is blunt about what a snorkel actually does: it’s an insurance measure, not a guarantee, and drivetrain wear from muddy water stays a real concern even with every vent properly raised.
An install manual PDF for a snorkel kit echoes this sequence with diagrams showing exact CVT inlet locations and panel removal steps, which is worth having open on a tablet while you work rather than relying on memory.
Model notes and fitment tips for CFORCE, ZFORCE, and UForce machines
Each CFMOTO platform routes air and vents a little differently, so the generic steps above need a few model-specific adjustments.
- CFORCE models: the airbox typically sits behind a side panel, so expect routing through the side rather than the center, with bracket mounting points usually along the inner fender or frame rail.
- ZFORCE models: intake and CVT routing often run through the center channel behind the seats, which means you’ll need interior access and longer vent runs to clear the cabin area.
- UForce models (including the UForce 1000): full kits commonly ship with multiple risers to cover both CVT and differential breathers in addition to the main intake, which is part of why a model-specific kit has a real fitment advantage here.
How many risers you need depends on how many vent points sit below your intended wading depth. A machine with separate CVT and diff breathers will need more risers than one with a single combined vent, so check your kit’s parts list against your model before assuming one riser covers everything.
DIY vs purpose-built kits: cost, reliability, and resale
A DIY build using PVC or spa hose costs less upfront, but a molded, purpose-built kit tends to have fewer leak points and a cleaner finish since the pipes and brackets are shaped for your exact model rather than bent and clamped into place. Forum discussion comparing the two approaches consistently lands on the same conclusion: DIY works but demands more care, while kits handle multiple vent connections with purpose-made parts.
If you go the DIY route, stick to stainless clamps, HVAC-grade flexible hose only where rigid pipe isn’t practical, vibration-damping hardware, and a sealant rated for continuous exposure to water and vibration.
- Stainless clamps resist corrosion better than standard zinc-coated hardware.
- Vibration-damping mounts reduce fatigue cracking at riser joints over time.
- Visible DIY cutting and patchwork can be flagged by a buyer during resale, so keep that in mind as an ownership consideration, not just an install-day decision.
Post-install testing and routine maintenance to keep a snorkel working
Don’t skip the test phase. A dry-pressure or soapy-water test catches obvious leaks before you ever get near water, and a shallow-water trial should come before any deep crossing.
- Run a static leak check first, then a shallow-water test to confirm every seal holds under real conditions.
- Check clamp tightness, seal condition, vent routing, CVT belt behavior, and differential breather status on a regular schedule, especially after heavy water use.
- If water ingress is suspected at any point, stop riding, inspect every joint, and re-seal before your next outing.
Routine filter and seal checks pair well with a broader service routine; our maintenance schedule guide covers the cadence worth following year-round. Worth noting too: cabin and engine air filters carry their own replacement intervals, roughly every 20,000 to 25,000 kilometers, which is easy to forget once a snorkel is installed and attention shifts away from the stock filter housing.
Dealer-tested tips from real CFMOTO snorkel installs
A few details separate a rattle-free install from one that works loose within a season. Mounting risers with vibration-damping fasteners where they meet plastic panels, staggering clamps instead of stacking them at one stress point, and bracing long vent runs with intermediate brackets all help prevent fatigue cracks down the line.
- Stagger clamps along a run rather than clustering them at a single joint.
- Support long vent lines with a bracket every foot or so to stop sagging and rubbing.
- Run a short pre-ride checklist after install: confirm fitment, pressure-test for leaks, then do a short water trial before a full outing.
Complex multi-riser jobs, or any install that touches electrical routing or radiator placement, are worth having a professional handle rather than troubleshooting mid-install.
Who should seriously consider snorkeling their CFMOTO
Riders who regularly cross deep mud, swamp terrain, or repeated water crossings get the most out of a snorkel, and that includes mud-competition riders who treat intake height as a performance variable. Casual trail riders who rarely see water above the fender usually don’t need one. If you fall into the frequent-water category, weigh a dealer install against a DIY kit based on how much risk you’re willing to carry yourself.
— Dirty
How we can help with CFMOTO snorkel kits and installs
We stock parts and accessories, offer nationwide delivery, and our technicians ride the machines we sell, so fitment questions get answered by people experienced with routing these vent lines. If you want a fitment check before ordering parts, or you’d rather have the install handled in-shop, reach out and we’ll walk through what your model needs.
During an install, we verify:
- Riser and bracket fitment against your exact model and trim.
- Clamp torque and seal quality on every joint.
- CVT and diff vent routing before the first water test.
Browse our full lineup of ATVs, UTVs, and parts or check out quick-attach accessory anchors that make mounting brackets and supports easier to secure during a snorkel build.
FAQ
Do I need to snorkel both the CVT and the airbox?
Yes, most thorough installs raise the CVT inlet and outlet along with the diff breathers, not just the air intake. Forum reports confirm these vent points often sit lower than the airbox on CFMOTO side-by-sides, so skipping them leaves the drivetrain exposed even with a raised intake.
What tools do I need for a CFMOTO snorkel install?
You’ll need a metric socket set, trim removal tools, a torque wrench, a step bit or hole saw for cutting, deburring tools, and sealing supplies like stainless clamps and silicone RTV. A full breakdown of the checklist appears earlier in this guide.
Is a purpose-built snorkel kit better than a DIY setup?
A molded, model-specific kit generally has fewer leak points and a cleaner finish since its parts are shaped for your exact machine. Forum comparisons note that DIY builds work but demand more care in sealing and routing to match that same reliability.
How do I test a snorkel install before riding in water?
Run a dry-pressure or soapy-water test on every joint first, then follow with a shallow-water trial before attempting a deep crossing. This step-by-step sequence is standard practice across most aftermarket install guides.
Does a snorkel install affect my CFMOTO warranty?
Aftermarket modifications like a snorkel kit can affect warranty coverage depending on the specific component involved, so check your documentation or ask your dealer before cutting any panels. We can review what a given install involves if you want a fitment check before you start.
