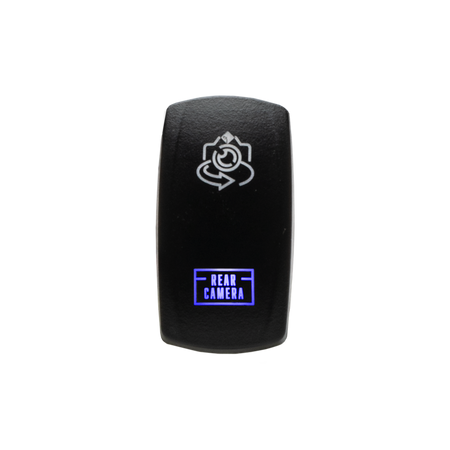

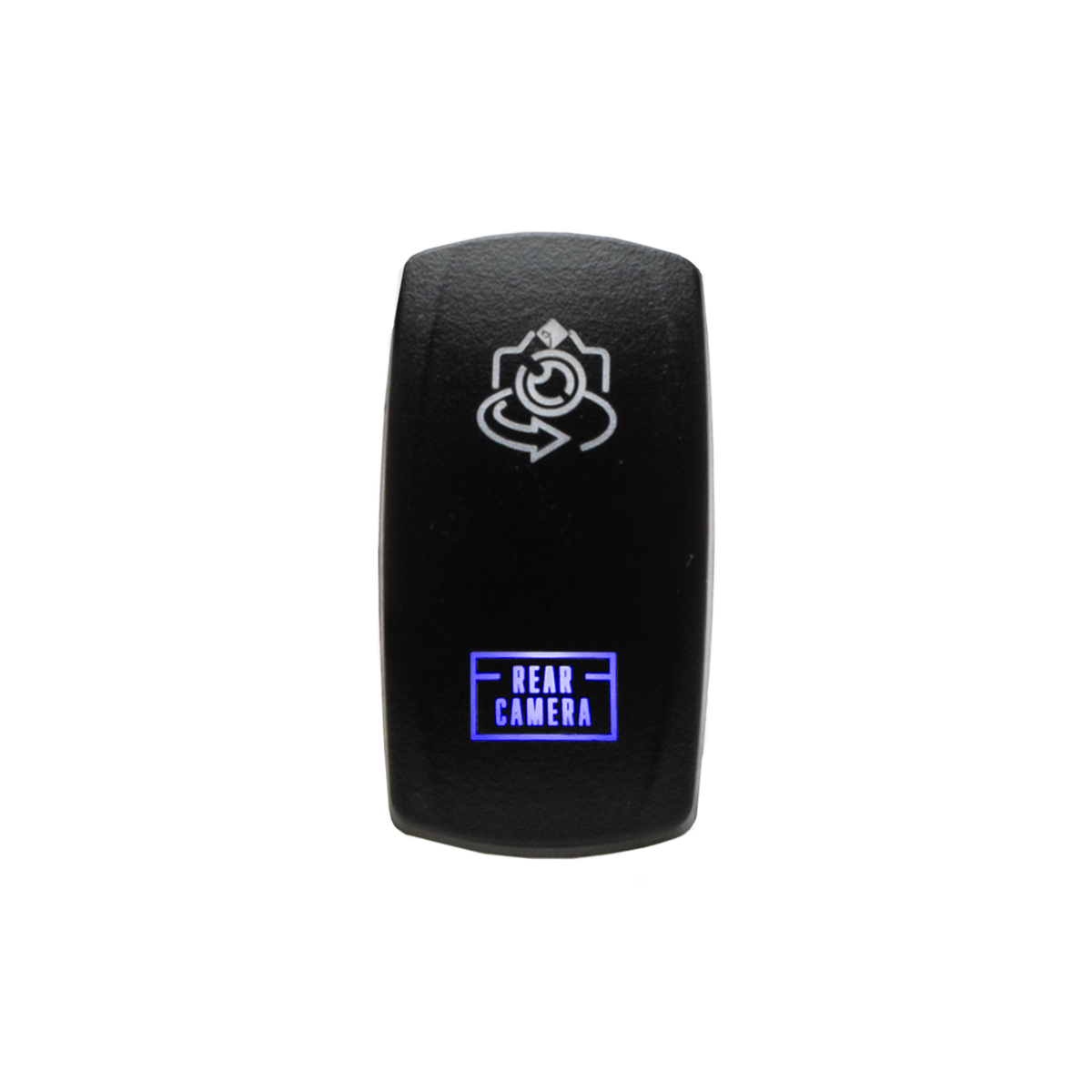

The MX-CAM-X317 is a vehicle specific installation kit for the MX-CAM, purpose-built for select Can-Am® MAVERICK X3® models. An included bracket allows for factory fitment on 2017 and newer models. The included T-harness allows for easy, error proof electrical connections. The harness plugs directly into PMX-3 and PMX-8 source units with an integrated trigger wire, and the included red/blue backlit rocker snaps into an open slot in the X317-DK providing instant camera view. Kit requires matching MX-CAM motorsports backup camera.

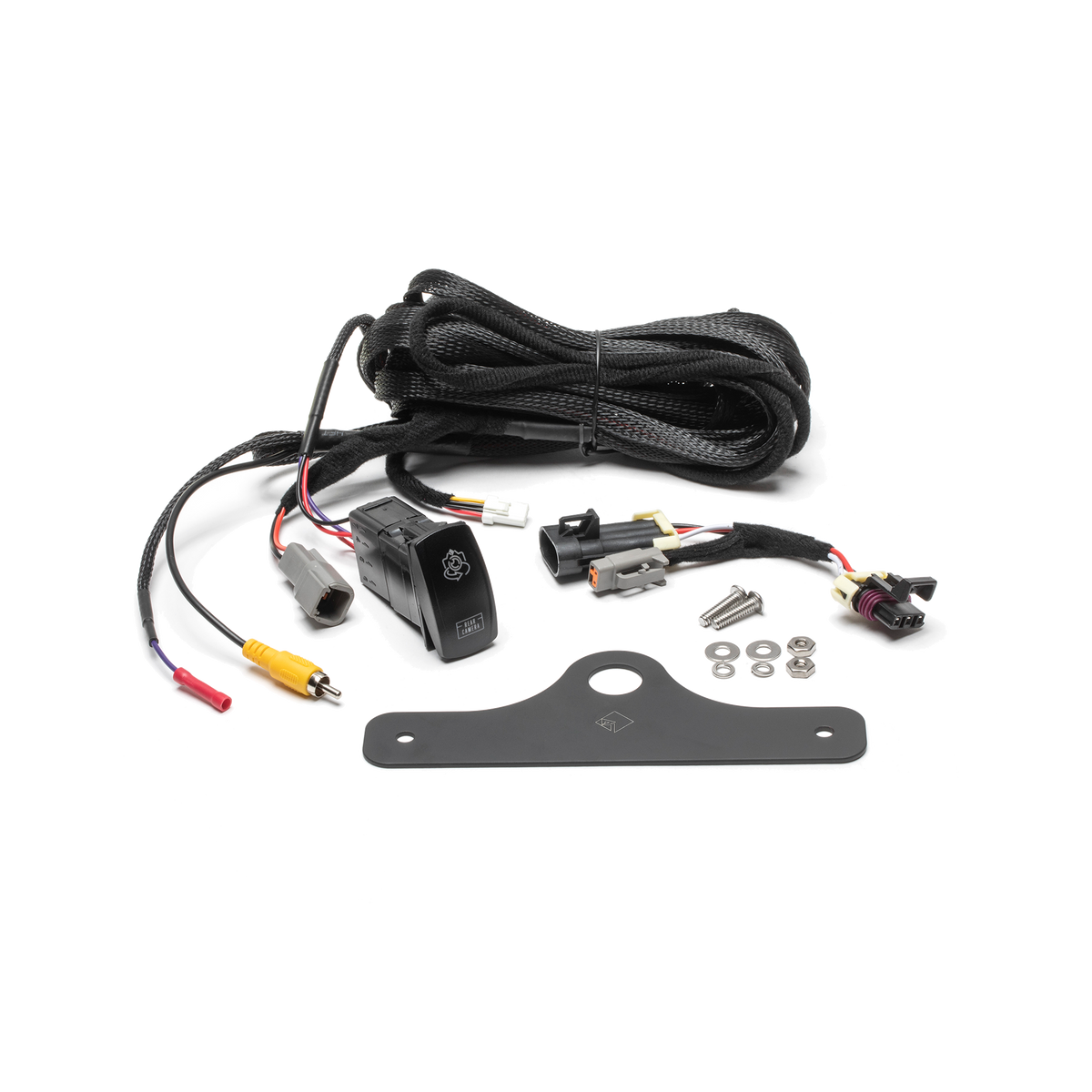

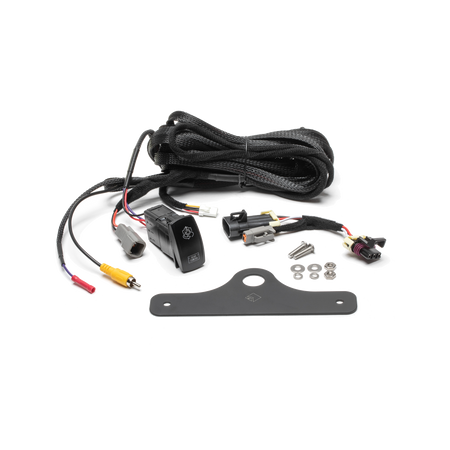

In The Box
(1) Can-Am X3 License plate bracket mount (steel)
(2) Screws/2 nuts (hardware for Camera plate)
(1) Main harness with carling switch
(1) Can-Am X3 Tail-light T-Harness adapter
MODEL
DESCRIPTION
X317-STG5
PMX-3, 1500 Watt, Front Color Optix™ Speaker, Subwoofer & Rear Speaker Kit for Select Can-Am® X3 Models (Gen-3)
X317-STG6
PMX-3, 1500 Watt, Front Color Optix™ Speaker, Subwoofer & Rear Horn Speaker Kit for Select Can-Am® X3 Models (Gen-3)
PMX-3
Compact Digital Media Receiver w/ 2.7" Display
PMX-8DH
Punch Marine Full Function Wired 5" TFT Display Head for PMX-8BB
