CFMOTO Diagnostic Codes: Read, Interpret, and Act

17 min read
Technician checking ATV dash with tools

When a fault code appears on your CFMOTO’s dash, do three things immediately: record the exact code or flash sequence, pull up your model’s owner or service manual for the definition, and decide whether the machine is safe to ride. Most CFMOTO diagnostic codes point to sensor or circuit faults that won’t strand you on the trail. A few, especially oil pressure warnings, mean stop the engine now. The difference between those two situations is everything.

If the code is unfamiliar or the machine is behaving badly, the safest call is to contact a CFMOTO-authorized dealer like Dirtybirdypowersports before riding further.

Pro Tip: Before you touch anything, photograph or video the dash. A three-second clip of a flashing MIL lamp is worth more than a written description when you’re talking to a technician.

  • Record the code or count the flashes before clearing anything.
  • Check oil level and coolant level immediately if the warning involves temperature or pressure.
  • Consult your owner’s manual or service manual for the exact definition for your model.
  • Never clear an oil pressure or engine temperature warning without identifying and fixing the cause first.

Key Takeaways

Reading and acting on CFMOTO diagnostic codes correctly requires capturing the code first, verifying its definition in the model’s official manual or via PDA, performing basic physical checks, and escalating to a dealer for safety-critical or module-level faults.

Point Details
Capture before clearing Record the exact code or flash sequence before touching anything — clearing erases diagnostic history.
Manual is the authority Download your model’s service manual from CFMOTO’s official manuals page for exact code definitions.
PDA beats generic scanners Automotive OBD-II readers are often incompatible with CFMOTO EFI and EPS systems; the CFMOTO PDA is the reliable option.
Oil pressure means stop now An oil pressure warning is a mechanical emergency requiring immediate engine shutdown, not a code to monitor.
Dirtybirdypowersports for complex faults PDA-equipped CFMOTO technicians at Dirtybirdypowersports handle EPS, ABS, and multi-code faults beyond DIY scope.

Table of Contents

How does CFMOTO display diagnostic codes on the dash?

CFMOTO uses two main methods to communicate fault information: a flashing MIL (Malfunction Indicator Lamp, also called the EFI lamp) and a numeric code shown directly on the instrument cluster’s odometer or trip display.

MIL flash codes

The MIL flash-code system works by grouping long and short flashes to represent individual digits. A long flash typically represents a higher-value digit and a short flash a lower one, with a pause between digit groups. Count the sequence carefully: the first group gives the first digit, the second group gives the second, and so on, building a two- to four-digit code. The CF800-2 Service Manual documents this format and confirms that a PDA can be connected for a more direct readout. Community guides like the 650nk flash-code reference include example decoding tables that walk through the counting method step by step.

Instrument cluster numeric display

On models with a digital cluster, the odometer or trip field switches to show a numeric fault code directly. When more than one fault is stored, the CFMOTO 700 CLX owner’s manual confirms the cluster cycles to the next code every few seconds. Short-pressing the ADJ button returns the display to the odometer. The CFORCE CF800 owner’s manual echoes this behavior and points owners to specific pages for flash-code details and PDA usage.

PDA dealer display

The CFMOTO PDA (the manufacturer’s dedicated scan tool) reads stored and active codes directly from the ECU, displays their text definitions, and logs live sensor data. It gives you the full picture that a flashing lamp or a two-digit cluster code cannot. Think of the cluster display as a heads-up alert and the PDA as the full diagnostic report.

Note: The three-second cycling interval means a quick glance at the dash can miss a second or third stored code entirely. Watch the display through at least two full cycles before recording.

Pro Tip: Use your phone’s slow-motion video mode to capture MIL flash sequences. Play it back frame by frame to count long and short flashes without guessing.

How to read a CFMOTO code without diagnostic tools

You don’t need a PDA to get useful information from the dash. Follow these steps in order.

  1. Stop safely. Pull off the trail or road, shut off accessories, and let the engine idle or shut it down if any warning light is red or blinking rapidly.
  2. Watch the MIL lamp or cluster display. Count at least two full flash cycles or watch the numeric display cycle through all stored codes before writing anything down.
  3. Record everything. Write down the exact code number or your flash count, the engine temperature, the approximate RPM when the light appeared, and anything unusual (rough idle, loss of power, unusual noise).
  4. Note recent events. Did you just cross water? Run low on fuel? Hit a hard bump? Context narrows the diagnostic field significantly.
  5. Download your model’s manual. The CFMOTO owners and service manuals page hosts official PDFs for CFORCE, ZFORCE, and UFORCE models. Find your model, open the EFI or fault-code section, and look up the exact definition.
  6. Use the ADJ or SEL button to cycle back to the odometer display once you’ve captured all codes. On most models, a short press of ADJ exits the fault-code screen.
  7. Perform basic safety checks before deciding whether to continue riding (see the safety section below).

Pro Tip: Record the code, the symptom, and the conditions in a notes app with a timestamp. If the fault reappears at the dealer, that log cuts diagnostic time considerably.

Common CFMOTO diagnostic codes and what they typically mean

Fault codes vary by model and ECU generation, so always verify against your specific service manual. That said, certain codes show up repeatedly across CFMOTO forums and owner reports.

  • Coolant or oil temperature sensor fault (P0118-type). Reported across multiple UForce and CFORCE models as a high-voltage or open-circuit reading from the temperature sensor. Symptoms include a temperature warning light, erratic gauge behavior, or a rich-running condition. First checks: inspect the sensor connector for corrosion or a loose pin, check coolant level, and test sensor resistance against the spec in your service manual. The CFMOTO forum fault-code tracker collects user-reported examples of this code, though those reports are community-sourced and need verification against your model’s official manual.
  • Injector circuit fault. Typically shows as a misfire, rough idle, or no-start condition. Check the injector connector and harness for chafing or water intrusion before condemning the injector itself.
  • Throttle position sensor (TPS) fault. Often triggers hesitation or surging. A loose or corroded TPS connector is the most common cause before the sensor itself fails.
  • CAN bus / communication fault. These codes indicate the ECU cannot communicate with another module (EPS controller, instrument cluster, ABS). Symptoms range from a dead power-steering assist to a completely blank cluster. Wiring integrity and connector seating are the first checks; ECU software mismatches are a dealer-level fix.
  • Crankshaft or camshaft position sensor fault. Causes hard starting or stalling. Check the sensor gap and connector before replacing.

Always verify code definitions in your model’s official service manual or through the CFMOTO PDA before ordering parts. Community fault-code lists are useful starting points, but a code number that means “coolant sensor high voltage” on a UForce 800 may carry a different definition on a ZFORCE 950. Replacing parts based on a forum post without verification is how a $30 connector fix turns into a $300 parts order.

Which tools actually read and clear CFMOTO codes?

The CFMOTO PDA

The CFMOTO PDA scan kit is the authoritative diagnostic tool for the brand. The PDA scan-tool guide lists required adapters by model: the JCY1-0103 and JCY1-0108 are among the connectors needed for different model families, and the guide documents a software version history that includes recent versions. Critically, the guide warns that automotive scan tools are not necessarily compatible with CFMOTO EFI and EPS systems. That’s not a minor caveat: a generic OBD-II reader may connect, display nothing useful, or worse, report no codes when faults are actively stored.

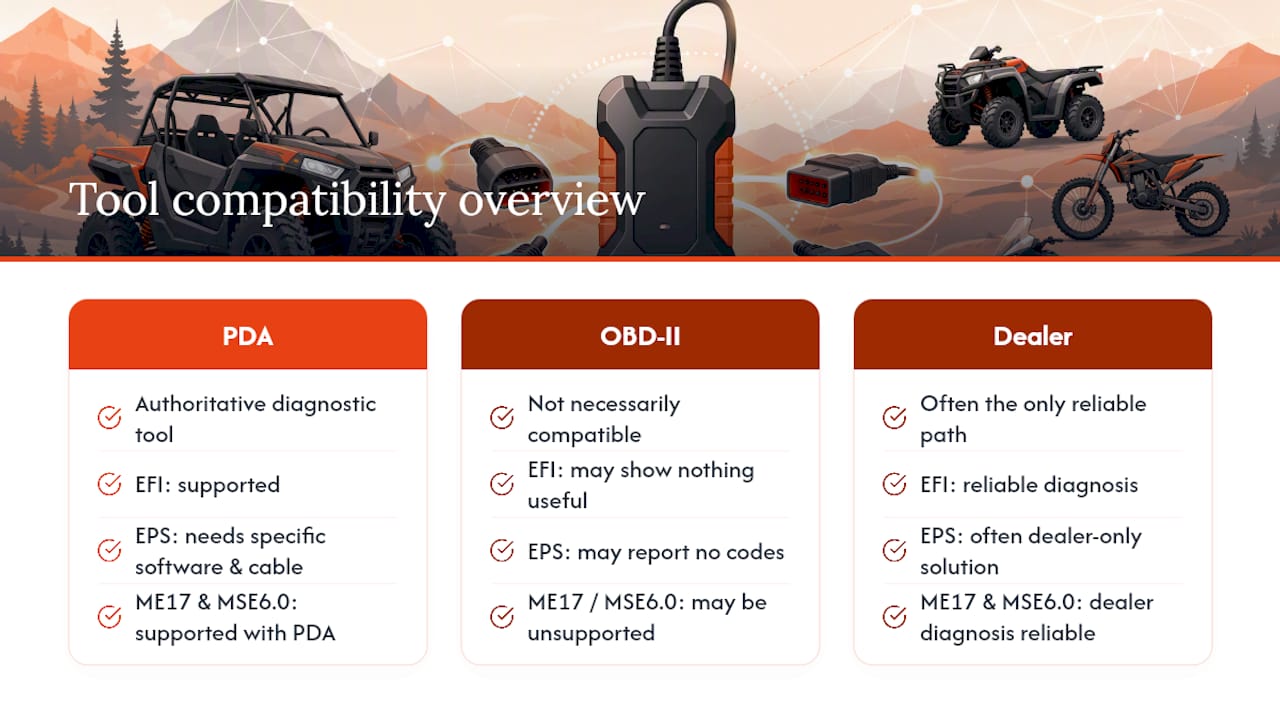

Comparison infographic of CFMOTO PDA vs generic scanners

ECU compatibility matters too. Some ECU generations, including ME17 and MSE6.0 variants, require specific PDA software releases and the correct converter cable. Older PDA software versions may not support EPS modules built after a certain date. This is why dealer-level diagnosis is often the only reliable path for communication faults or EPS-related codes.

Generic and Bluetooth OBD-II readers

Some CFMOTO models with a standard OBD-II port will communicate with generic readers for basic powertrain codes. Results are inconsistent across model years and ECU types. A Bluetooth adapter paired with a phone app may read a P-code on one machine and return nothing on the next. Use these as a quick first look, not a substitute for PDA diagnosis.

  • PDA with correct adapter: Full read/write, live data, code clearing, module programming.
  • Generic OBD-II scanner: Partial read on some models, no EPS or cluster module access, no programming.
  • Bluetooth adapter + app: Convenient for basic P-codes; unreliable for CFMOTO-specific codes and non-powertrain modules.

Pro Tip: Before buying a third-party Bluetooth adapter, search your specific model and ECU type in CFMOTO owner forums. Compatibility varies enough that a tool that works on a CFORCE 400 may be useless on a UFORCE 1000.

How to clear CFMOTO diagnostic codes safely

Clearing a code before fixing the fault is the single most common diagnostic mistake. The code disappears, the owner rides, the fault returns, and now there’s no history to work from.

When it’s appropriate to clear:

  • You’ve identified and repaired the root cause.
  • You’re performing a post-repair verification test.
  • The code was triggered by a transient event (a momentary sensor dropout during a water crossing, for example) and the system has confirmed no active fault.

Steps to clear via PDA or compatible reader:

  1. Connect the PDA or scanner with the ignition on, engine off.
  2. Navigate to the fault-code or DTC menu for your model.
  3. Select “Clear Codes” or the equivalent function.
  4. Cycle the ignition off, wait 30 seconds, then restart.
  5. Check for immediately returning codes before riding.
  6. Take a short, controlled test ride and recheck the fault-code screen.

When you must not clear:

  • Oil pressure warning is active. Clearing the code does not restore oil pressure.
  • Engine temperature warning is active and the cause is unknown.
  • A CAN/communication fault is present and the EPS or ABS module is not responding correctly.
  • The machine is exhibiting symptoms (rough running, power loss, unusual noise) that haven’t been diagnosed.

Pro Tip: After clearing codes, always let the engine reach operating temperature before declaring the repair successful. Some faults only set once the ECU completes its full warm-up cycle.

From recorded code to fix: a practical troubleshooting workflow

Working through a fault code systematically saves time and avoids unnecessary parts replacement. Here’s the order that works.

  1. Record the code and conditions as described above. Don’t skip this step even if the fix seems obvious.
  2. Consult the service manual for your exact model. Download it from CFMOTO’s official manuals page if you don’t have it.
  3. Perform basic physical checks before touching the ECU or ordering parts.
  4. Run targeted electrical tests based on the fault (sensor resistance, voltage at connector, continuity of harness).
  5. Repair or replace the confirmed faulty component.
  6. Clear the code, verify, and test ride.
  7. Escalate to dealer if the code returns, if you lack the test equipment, or if the fault involves ECU programming or EPS/ABS modules.

Basic checks any owner can do safely:

  • Battery voltage should be within an appropriate range at rest and with engine running.
  • Engine oil level and condition.
  • Coolant level in reservoir.
  • All visible wiring connectors, especially near the engine and ECU, for corrosion, loose pins, or chafing.
  • Fuse box inspection for blown fuses.
  • Air filter condition (a severely clogged filter can trigger sensor codes).

Escalate to a dealer when:

  • The code returns within one ride after clearing.
  • The fault involves EPS, ABS, or ECU communication modules.
  • You see multiple unrelated codes simultaneously (often signals a power or ground issue).
  • The machine won’t start or runs dangerously rough.

Dashboard warnings that mean stop the engine right now

Not every warning light is an electronic fault code. Some are mechanical emergencies.

  • Oil pressure warning light: Stop immediately, shut off the engine, and do not restart until you’ve checked the oil level and identified the cause. Low oil pressure can destroy an engine in minutes. The CF500UTR-2 / CF800UTR-2 owner documentation makes clear that this warning requires immediate engine shutdown regardless of whether a diagnostic code is present.
  • High engine temperature warning: Pull over, shut down, and let the engine cool. Check coolant level only after the engine has cooled enough to open the reservoir safely.
  • Battery/charging warning: Less immediately dangerous, but riding with a failing charging system will leave you stranded.

Safe on-site checks:

  • Check the oil sight glass or dipstick with the machine on level ground.
  • Look under the machine for visible oil leaks.
  • Check the coolant reservoir level visually.

If the oil level is correct and the pressure warning stays on after a restart, do not ride. Tow the machine to a dealer. A mechanical oil pressure fault (failed pump, blocked pickup, worn bearings) will not show as a standard EFI diagnostic code, and no scan tool will fix it.

What most owners get wrong about CFMOTO fault codes

The biggest mistake is treating a fault code like a parts number. Someone sees a temperature sensor code, orders a sensor, replaces it, and the code comes back three rides later because the real problem was a corroded connector 18 inches away from the sensor. The code told you which circuit had a problem, not which component failed.

The second mistake is clearing codes the moment they appear. That three-second window of a stored code is diagnostic gold. It tells you what the ECU saw, when, and under what conditions. Clearing it before you’ve written anything down is like deleting the only photo of the crime scene.

Connectors deserve more attention than they get on off-road machines. Water, mud, and vibration degrade connector pins faster than almost any other component. Before replacing any sensor, unplug its connector, inspect the pins for green corrosion or bent contacts, apply dielectric grease, and reseat it firmly. A surprising number of “sensor faults” disappear after this alone.

When to bring the machine to a dealer: any time the fault involves EPS or ABS modules, any time you have multiple simultaneous codes you can’t trace to a single root cause, and any time an oil pressure or severe temperature warning appears. Those aren’t DIY territory unless you have the PDA, the service manual, and the electrical test equipment to back up your diagnosis.

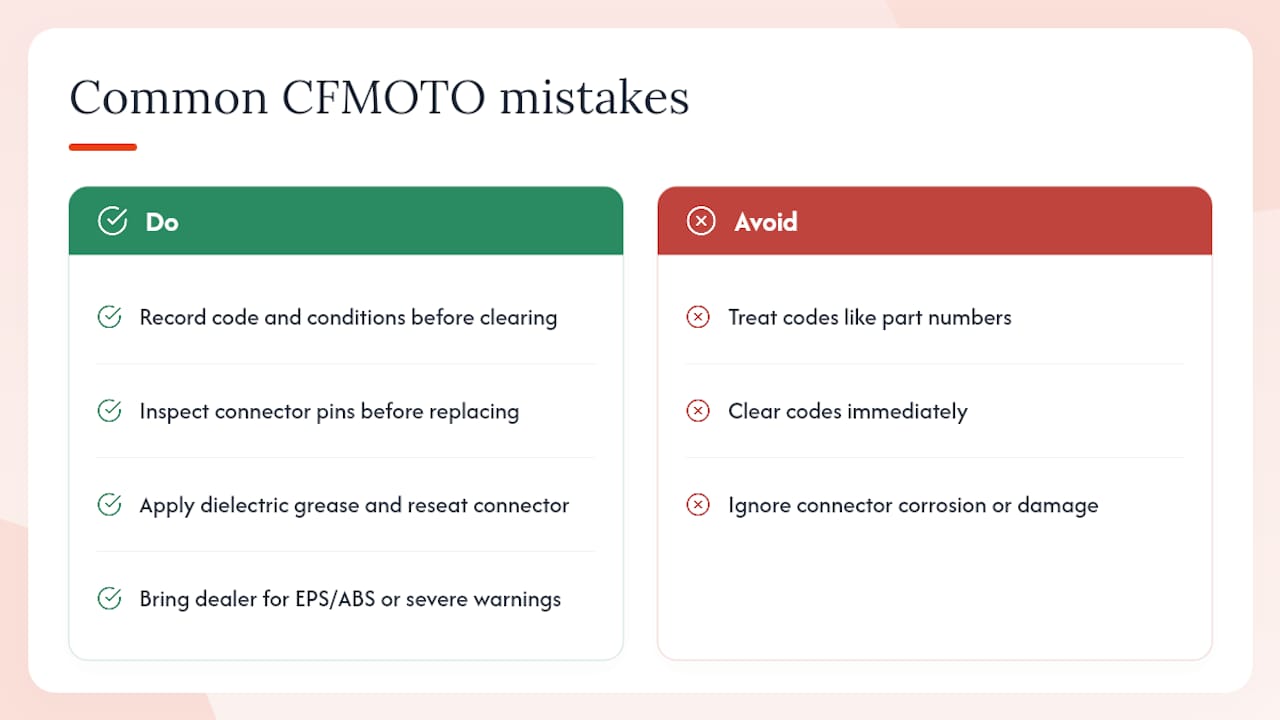

What most owners get wrong about CFMOTO fault codes — overview diagram

Dirtybirdypowersports has CFMOTO-trained technicians ready to help

When the code points to something beyond a connector check or a sensor swap, you need a shop with the actual CFMOTO PDA, the model-specific service manuals, and technicians who ride the same machines they work on.

Dirtybirdypowersports

Dirtybirdypowersports is a dedicated CFMOTO dealer with PDA-equipped technicians, access to OEM parts across CFORCE, ZFORCE, and UForce model lines, and a 5.0 Google rating backed by over 200 successful deliveries. Whether you need a full diagnostic scan, a fault cleared after a confirmed repair, or guidance on a code you can’t pin down, the team at Dirty Birdy can connect remotely or in person. While you’re in for service, it’s also a good time to check wear items like tires. The shop carries options like the Braven Hellhound Uber XOR ATV/UTV Radials for riders who want aggressive tread to match their machine’s capability. Contact Dirtybirdypowersports to book a diagnostic appointment or get a straight answer on what your fault code actually means.

Where to find CFMOTO manuals, PDA guides, and official downloads

  • CFMOTO Official Owners & Service Manuals: The primary download hub for CFORCE, ZFORCE, and UFORCE owner and service manuals. Start here for any model-specific code definition or diagnostic procedure.
  • CF800-2 Service Manual: Covers MIL flash-code format, PDA diagnostic procedures, and fault-code tables for the CF800-2 platform. Useful reference for understanding how flash codes are structured across the brand.
  • CFMOTO 700 CLX / CLX Sport Owner’s Manual (2024): Documents cluster display behavior, the three-second code cycling interval, and ADJ button usage for current-generation models.
  • CFORCE CF800-2 Owner’s Manual (2016–2017): Covers flash-code reading procedures and PDA references for the CF800-2 generation.
  • CFMOTO PDA Scan Tool Guide (Scribd): Lists required adapters (JCY1-0103, JCY1-0108), software version history, model connector locations, and compatibility warnings for automotive scan tools.
  • CFMOTO Forum Fault Code Tracker: Community-maintained code reports for the UForce 800 and related models. Useful for cross-referencing symptoms, but always verify against the official service manual before acting on a forum-sourced definition.
  • 650nk EFI Flash Code Reference: An independent guide with flash-count decoding tables and examples. Helpful for understanding the counting method, though it covers a specific model and should not replace your model’s own documentation.

Forum lists are a reasonable starting point when you’re trying to understand what a code might mean at 9 PM on a Saturday. They are not a substitute for the official service manual, and they are definitely not a substitute for PDA diagnosis when the fault involves EPS, ABS, or ECU communication modules.
